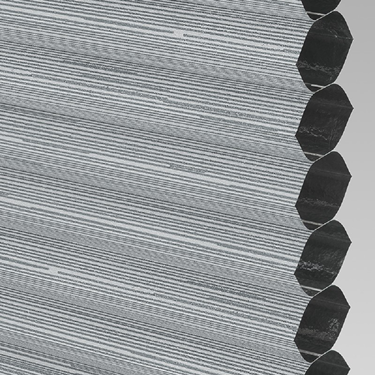

VALE Blackout Honeycomb Blind

Inside Recess

The recess is inside the window opening. Choose this option if you want to the blind to lie in the recess of the window.

Width: Measure the inside width of the window at the top middle and bottom. Use the narrowest width measurement always using a metal tape measure.

Height: Measure the height of the window at the left, centre and right. Use the shortest height measurement always using a metal tape measure.

We will deduct the manufacturers recommended tolerance off the width/drop of the blind to ensure the blind operates perfectly within the window recess.

Outside Recess/Exact

Outside Recess/Exact is the outside of the window opening, overlapping the window recess. Choose this option if you want the blind to overlap the window recess.

Width
To minimise light leakage it's recommended that the blind overlaps the window recess on the width by least 40mm each side (60mm in the case of vertical blinds).

Height
When measuring the height take into account the required space for the mounting bracket. A flat surface of a minimum 70mm above is required (50mm in the case of vertical blinds). The overlap at the bottom of the blind is a matter of personal choice but please take into account obstacles such as radiators.

If you are unsure please contact us on 01949 845399

Vale Honeycomb Blinds

You have a choice of control options on your Vale Honeycomb blind.

The standard is a White Cord on the left or the right hand side.

Alternatively you can select Centre Hand Control with tensioned side cords. These are ideal if you want to put your blind on a door.

This blind includes a fixed bottom rail - Model P1602

Minimum Width - 200mm Maximum Width - 1200mm

Minimum Drop - 100mm Maximum Drop - 2200mm

If you have Tilt and Turn windows Model P2602 is deal as this can be fitted on windows with a maximum angle of 60 degrees

Minimum Width - 200mm  Maximum Width - 1500mm

Minimum Drop - 100mm    Maximum Drop - 1500mm

If you are unsure please call on 01949 845399

Vale Honeycomb Blinds

Your Vale Honeycomb pleated blind comes complete with a head rail in White

Alternatively you can select a head rail in Brown or Anthracite.

 The head rail is approximately 20mm deep x 18mm high

If you are unsure please call us on 01949 845399

Vale Honeycomb Blind Control Rod

For those honeycomb blinds that are out of reach, for example roof blinds or blinds installated high up, you can purchase a control rod to operate the blind.

The control rod is available in 3 sizes to cover all heights.

The end of the control rod fits perfectly onto the handle that is positioned in the centre of the bottom bar.

Rod colour may change colour displayed is for illustration purposes only.

Any queries please contact us on 01949 845399

Blind Installation Heights

The 2014 changes to the child safety requirements of BS EN 13120:2009+A12014 place an obligation on all blind manufacturers to sell compliant products.

If you do not know the installation height of the blind please enter 00 in the box and your blind will be manufactured in accordance with the Safety Regulation requirements.

If you input an installation height (this is the height the mounting brackets will be installed above the floor level) then your blind may be manufactured with longer controls providing they confirm to the child safety legislation.

For windows in unusual positions or installed extremely high, please contact us.

If you are unsure please contact us on 01949 845399
