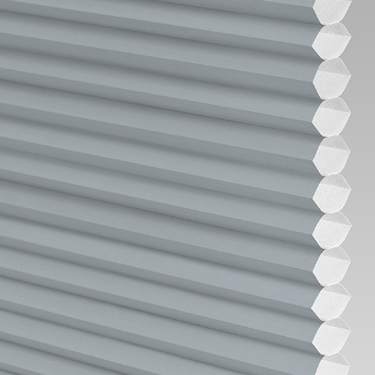

INTU Micro 18mm Honeycomb/Cellular Blind

INTU Micro Rubber Bead Type

It is important to select the Rubber Bead Type that you have in your window.

The maximum bead depth for the Screw Fit blinds is 16mm

INTU Micro Rubber Profile Type

Please select one of the below side profile shapes. The three profiles listed are the only ones available for the INTU Micro Blinds, there are no alternatives.

Profiles are not available/required on the the Guided Bead Fit or the Tensioned Screw Fit installation options

Multi-Zone

If you require greater control over shade and light than offered by a standard top fix blind, Multizone is the solution. Multizone blinds have two moving rails allowing you to operate the blind both at the top and bottom.

Multizone is a feature on any blind using fabric from the Pleated or Cellular range.

INTU Micro Installation Option

Tensioned Bead Fit - Blind fits by means of brackets that slide between the glass and the rubber bead of the window/door. The blind endcaps then attach to the brackets offering a secure fit without the need for screws.

Guided Bead Fit - Blind fits by means of brackets that slide between the glass and the rubber bead. The profiles then stick to the glass by means of adhesive strips. Guided endcaps restrain the top and bottom of the blind and prevent unwanted movement - this is a beneficial feature when installing on bi-folding doors.

The Guided Bead Fit is ideal for windows and doors with a square edge frame and a recessed rubber bead.

Screw Fit - Installation of the screw fit blind is acheived using 2 screws that are fitted directly to headrail endcaps. Tension cords using specially designed bead grommets that are installed through drill holes in the bottom bead of the door/window. Brass bushes are supplied for installations where the blind is being fitted to a timber frame.

NOTE-Screw fit blinds are not pre-tensioned.
