VALE R20 Large Blackout Roller Blind

Place your mouse over this image

On offer

10%OFF

  • 1 Year Guarantee
  • Info
  • Installation Instructions (3)
  • Delivery

Standard Specification:

  • 100% Polyester, Fire Retardant Fabric
  • Single blind or Double blind options
  • White Metal Brackets and Covers
  • Brackets are 62mm x 46mm
  • Aluminium Tube either 32mm, 40mm or 45mm depending on blind size
  • Metal Control Chain on left or right
  • Aluminium Tear Drop Bottom Bar, White, Silver or Black
  • Alternate Fabric wrapped bottom bar, fabric to front only
  •  Motorised Option Available

SIZE LIMITATIONS:

Blinds without a join have a maximum width of 3450mm - and maximum drop of 1850mm - blinds with a longer drop will have a welded horizontal join

OR

Blinds without a join have a maximum drop  of 4250mm - and a maximum width of 1450mm

Double Blind option

Min Width 200mm    Max Width 2650mm

Max Drop 3350mm   Max square meterage 6.5m

Delivery

For full details of our delivery times please
click here

Beat a Price

VALE R20 Large Blackout Roller Blind

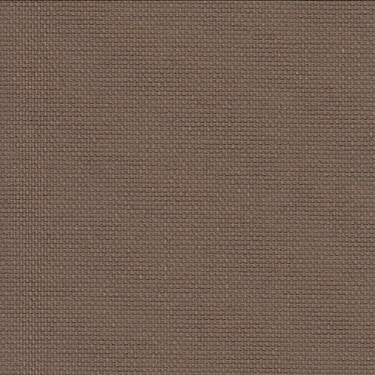

Eden - Chocolate

Order Code
10014
£71.86
£64.68

VALE Large Roller Blinds are available for those larger than normal windows and doors around the home and can be manufactured upto a width of 3450mm dependant of fabric choice.

Available in Blackout and Translucent Fabrics in a variety of colours. Blinds will have an aluminium tube, the diameter of the tube will depend on the overall size of the blind.

As standard the blinds are manufactured with white brackets with white bracket covers, a half fabric covered bottom bar, to the front only, or a tear drop metal bottom bar in a choice of colour.

Double Fabric Roller Blinds available as an option

Please be aware that large blinds may have a horizontal join.

All of these fabrics are Fire Retardant and comply with BS-5867

NOTE: This product can ONLY be delivered to the UK Mainland and Northern Ireland

Price in GBP
£71.86
£64.68
    • *
    • *
    • sa_btn_ten_10158080
    Click for help
    Click for Help
    Click for Help
    Click for Help
    Click for Help
    Click for Help
    Click for help
    4 characters remaining.

    Inside Recess


    The recess is inside the window opening. Choose this option if you want to the blind to lie in the recess of the window.

    Width: Measure the inside width of the window at the top middle and bottom. Use the narrowest width measurement always using a metal tape measure.

    Height: Measure the height of the window at the left, centre and right. Use the shortest height measurement always using a metal tape measure.

    We will deduct the manufacturers recommended tolerance off the width/drop of the blind to ensure the blind operates perfectly within the window recess.



    Outside Recess/Exact


    Outside Recess/Exact is the outside of the window opening, overlapping the window recess. Choose this option if you want the blind to overlap the window recess.

    Width
    To minimise light leakage it's recommended that the blind overlaps the window recess on the width by least 40mm each side (60mm in the case of vertical blinds).

    Height
    When measuring the height take into account the required space for the mounting bracket. A flat surface of a minimum 70mm above is required (50mm in the case of vertical blinds). The overlap at the bottom of the blind is a matter of personal choice but please take into account obstacles such as radiators.



    If you are unsure please contact us on 01949 845399

    VALE Large Roller Blinds come complete with a metal chain operation on either the left or the right of the blind.

    If you choose the double roller blind with two fabrics on one system, the blinds will come complete with one chain one the left and one chain on the right.

    Yewdale R20 Roller Chain Operation

    Alternatively you can select to have this blind operated either by rechargeable battery or by plug in mains electric, with the option of the Defaint motor or the Somfy motor.

    The rechargeable battery is built in on the battery operated blind and is available with a charger. We also offer this without a charge should you purchase more than one blind, as only one charger is required.

    The mains electric motor is concealed in either the left or the right of the roller tube and is operated by means of a remote control.

    Please note Defiant motors are not compatible with the Somfy Connexoon or TaHoma Home Automation System

    If you have chosen to have your VALE Large or Extra Large Roller Blind electrically operated you have various remote controls to operate them with.

    For Blinds with Defiant Motors

    Defiant Remote Controls

    For Blinds with Somfy Motors

    VALE Larger Roller Blinds are available as a standard single fabric blind with standard single brackets.

    Yewdale Roller Standard single bracket

    As an alterantive you can choose the double bracket which allows for two differnet fabric styles or colours to cover one window. The barrels are held with a sturdy metal bracket, with double spring action and metal control chain providng a smooth operation.

    For this option just order two blinds in the required fabrics but remember to choose the double bracket

    These blinds can be manufactured to the below sizes.

    Min Width 200mm Max Width 2650mm Max Drop 3350mm

    Max Square meterage 6.5m

    Yewdale Roller double bracket

    Yewdale Double Roller 1  Yewdale Double Roller 2

    Yewdale Double Roller 3



    VALE Large Roller Blinds can be manufactured with either the fabric wrapped bottom bar, wrapping on the front of the bottom bar only.

    Yewdale R20 Roller Chain Operation

    Or Alternatively you can select a tear drop metal bottom bar in White, Silver or Black

    Yewdale Tear Drop Bottom Bar

    Yewdale Tear Drop Bottom Bar Colours

    Roller Blind - Standard or Reverse Roll

    Standard Roll

    All Roller blinds are made as Standard - with the fabric falling off the roller towards the window. This option as always recommended when using a Dim out / Blackout fabric as this will reduce the light entering the room because the fabric will be closer to the window frame.

    Standard or Reverse Roll Image

    Reverse Rolled

    A Reverse rolled Roller blind is made with the fabric falling off the roller away from the window. This is usually preferred when you are trying to miss PVC window handles. We always recommend this option when ordering a printed fabric.

    This option is recommened for Blackout Blinds as the back of the fabric can be a different colour.

    If you are unsure please contact us on 01949 845399

    Blind Installation Heights

    The 2014 changes to the child safety requirements of BS EN 13120:2009+A12014 place an obligation on all blind manufacturers to sell compliant products.

    If you do not know the installation height of the blind please enter 00 in the box and your blind will be manufactured in accordance with the Safety Regulation requirements.

    If you input an installation height (this is the height the mounting brackets will be installed above the floor level) then your blind may be manufactured with longer controls providing they confirm to the child safety legislation.

    For windows in unusual positions or installed extremely high, please contact us.

    Child Safe Installation Height Diagram

    If you are unsure please contact us on 01949 845399
