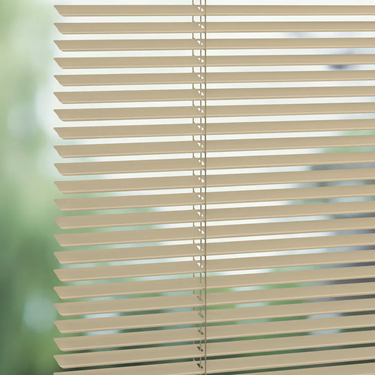

Luxaflex 25mm Metal Venetian Blind

Inside Recess

The recess is inside the window opening. Choose this option if you want to the blind to lie in the recess of the window.

Width: Measure the inside width of the window at the top middle and bottom. Use the narrowest width measurement always using a metal tape measure.

Height: Measure the height of the window at the left, centre and right. Use the shortest height measurement always using a metal tape measure.

We will deduct the manufacturers recommended tolerance off the width/drop of the blind to ensure the blind operates perfectly within the window recess.

Outside Recess/Exact

Outside Recess/Exact is the outside of the window opening, overlapping the window recess. Choose this option if you want the blind to overlap the window recess.

Width
To minimise light leakage it's recommended that the blind overlaps the window recess on the width by least 40mm each side (60mm in the case of vertical blinds).

Height
When measuring the height take into account the required space for the mounting bracket. A flat surface of a minimum 70mm above is required (50mm in the case of vertical blinds). The overlap at the bottom of the blind is a matter of personal choice but please take into account obstacles such as radiators.

If you are unsure please contact us on 01949 845399

Luxaflex® Metal 25mm control options

Your Luxaflex Metal Venetian Blind has various control options available

If you are unsure please contact us on 01949 845399

Luxaflex® 25mm Metal Venetian Blinds Model

The Luxaflex® 25mm Metal Venetian blinds are available in 5 models.

TruFit Size Restrictions

Min Width 330mm  -  Max Width 15600mm

Mind Drop 200mm  -  Max Drop 2200mm

Max 2m square

MegaView provides double the view to the outside whilst maintaining privacy when closed or tilted

MegaView Size Restrictions

Min Width 320mm  -  Max Width 3300mm

Mind Drop 200mm  -  Max Drop 3000mm

Max 4m square

VarioFlex allows you to open or tilt the top or the bottom of the blind separately

VarioFlex Size Restrictions

Min Width 531mm  -  Max Width 3300mm

Mind Drop 400mm  -  Max Drop 3000mm

Max 4.4m square

If you are unsure please contact us on 01949 845399

Luxaflex® Metal Venetian Head and Bottom Rails

As standard your Luxaflex Metal Venetian Blind will have colour co-ordinating Head and Bottom rails made from high quality steel

If you would like to know which head rail Luxaflex use for your colour choice please contact us on 01949 845399

If you want to know what colour your head and bottom rail will be please contact us on 01949 845399

Luxaflex® Metal Venetian Blind Tapes

Add extra style to your blind with an eye catching decorative tape.

Please Note: Tapes not available on blinds with LiteRise control option

If you are unsure please contact us on 01949 845399

Luxaflex® Metal Venetian

Plain decorative tapes are available in 3 different widths (on selected tapes)

10mm wide for 25mm & 50mm slat blinds

25mm wide for 50mm slat blinds

38mm wide for 50mm & 70mm slat blinds

Patterned decorative tapes are available in 2 widths (selected tapes)

10mm wide for 25mm & 50mm slat blinds

38mm wide for 50 & 70mm slat blinds

If you are unsure please contact us on 01949 845399

Luxaflex® Metal Venetian Hold Down Clips

Hold down clips are used to secure the bottom rail of a blind to the bottom of the window or door to prevent it from moving around. They are usually only needed for the installation of blinds on doors.

If you are unsure please contact us on 01949 845399

Luxaflex® Metal Venetian side guiding

Side guiding is wires that run down each side of the blind and prevents the blind from excessive movement, ideal for windows with a maximum angle of up to 15 degrees.

If you are unsure please contact us on 01949 845399

If you are ordering Blinds to sit next to each other or in a bay you can select to have the slats/vanes lining up across several blinds. The Blinds must be installed at the same height and have the same drop.

The manufacturers will align the slats/vanes as closely as possible.

Please Note: The number of ladder cords or tapes on a blind varies according to the blind width. Even the smallest difference in size can result in a different number of ladder cords or tapes - If you need to know this please contact us

Blind Installation Heights

The 2014 changes to the child safety requirements of BS EN 13120:2009+A12014 place an obligation on all blind manufacturers to sell compliant products.

If you do not know the installation height of the blind please enter 00 in the box and your blind will be manufactured in accordance with the Safety Regulation requirements.

If you input an installation height (this is the height the mounting brackets will be installed above the floor level) then your blind may be manufactured with longer controls providing they confirm to the child safety legislation.

For windows in unusual positions or installed extremely high, please contact us.

If you are unsure please contact us on 01949 845399
