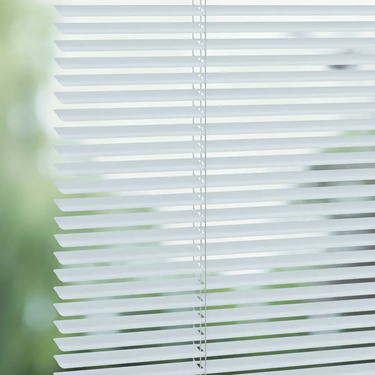

Luxaflex 16mm Metal Venetian Blind

Place your mouse over this image

On offer

23%OFF

  • 5 Year Guarantee
  • Info
  • Installation Instructions (6)
  • Delivery

Standard Model Specification:

  • Min Width 270mm - Min Drop 200mm
  • High quality colour co-ordinating steel head and bottom rails.
  • Colour co-ordinating durable plastic parts and cords.
  • Easy to adjust, child and pet safe cord connector for raising and lowering blind
  • Clear Wand for tilting slats
  • Fitted with a Child Safe Breakaway Connector
  • Supplied with Child Safe Cord Cleats

Alternative Options:

  • Hand Lift, Wand Tilt - Size Restrictions
  • Endless Chain Control
  • Top Down Bottom Up Model – Size Restrictions
  • TruFit Model – Size Restrictions
  • Hold Down Clips or Side Guiding
  • Motorization POA

Size Restrictions
Top Down/Bottom Up - (HAND CONTROL ONLY)
Max 2.1m2
Min Width - 270mm - Max Width - 1500mm
Min Drop - 300mm - Max Drop - 2000mm

TruFit – (HAND CONTROL ONLY)
Max 2m2
Min Width - 300mm - Max Width - 1420mm
Min Drop - 200mm - Max Drop - 2200mm

Delivery

For full details of our delivery times please
click here

Beat a Price

Luxaflex 16mm Metal Venetian Blind

2007

Order Code
4860
£233.00
£179.41

Luxaflex® 16mm Metal Venetian Blinds (made out of recycled aluminium) are fabricated according to the highest quality standards. High performance finishes enhance the visual properties of Luxaflex® Venetian Blinds and ensure years of enjoyment.

Luxaflex® 16mm Metal Venetian Blinds are manufactured with colour co-ordinate headrail, bottom rail, cords and end caps.

Luxaflex® 16mm Metal Venetian Blinds are available with different control options, side guiding and hold down clips to ensure easy operation and the best possible fit.

Top Down/Bottom Up and TruFit Model available

All Luxaflex® products are designed with safety and comfort in mind and all conform to the Child Safety Regulation EN131200

VALE BLINDS offer the complete range of Luxaflex® collections at competitive prices

Price in GBP
£233.00
£179.41
    • *
    • *
    • sa_btn_ten_10158080
    Click for help
    Click for help
    Click for Help
    Click for Help
    Click for Help
    Click for Help
    Click for Help
    Click for help
    4 characters remaining.

    Inside Recess


    The recess is inside the window opening. Choose this option if you want to the blind to lie in the recess of the window.

    Width: Measure the inside width of the window at the top middle and bottom. Use the narrowest width measurement always using a metal tape measure.

    Height: Measure the height of the window at the left, centre and right. Use the shortest height measurement always using a metal tape measure.

    We will deduct the manufacturers recommended tolerance off the width/drop of the blind to ensure the blind operates perfectly within the window recess.



    Outside Recess/Exact


    Outside Recess/Exact is the outside of the window opening, overlapping the window recess. Choose this option if you want the blind to overlap the window recess.

    Width
    To minimise light leakage it's recommended that the blind overlaps the window recess on the width by least 40mm each side (60mm in the case of vertical blinds).

    Height
    When measuring the height take into account the required space for the mounting bracket. A flat surface of a minimum 70mm above is required (50mm in the case of vertical blinds). The overlap at the bottom of the blind is a matter of personal choice but please take into account obstacles such as radiators.



    If you are unsure please contact us on 01949 845399

    Luxaflex® Metal 16mm control options

    Your Luxaflex Metal Venetian Blind has various control options available

    Luxaflex Metal Cord Wand control

    Luxaflex Metal Handle Wand control

    Luxaflex Metal Quick Release Endless Chain


    If you are unsure please contact us on 01949 845399

    Luxaflex® 16mm Metal Venetian Blinds Model

    The Luxaflex® 16mm Metal Venetian blinds are available in 3 models.

    Luxaflex Metal 16-25mm Standard Model

    Luxaflex Metal Top down Bottom up

    Luxaflex Metal Top Down Bottom Up Model

    Luxaflex Metal TruFit Model

    Luxaflex Metal TruFit Info

    If you are unsure please contact us on 01949 845399

    Luxaflex® Metal Venetian side guiding

    Side guiding is wires that run down each side of the blind and prevents the blind from excessive movement, ideal for windows with a maximum angle of up to 15 degrees.

    Luxaflex Metal Side Guiding

    If you are unsure please contact us on 01949 845399

    Luxaflex® Metal Venetian Hold Down Clips

    Hold down clips are used to secure the bottom rail of a blind to the bottom of the window or door to prevent it from moving around. They are usually only needed for the installation of blinds on doors.

    Luxaflex Metal Hold Down Brackets

    If you are unsure please contact us on 01949 845399

    Luxaflex® Metal Venetian Head and Bottom Rails

    As standard your Luxaflex Metal Venetian Blind will have colour co-ordinating Head and Bottom rails made from high quality steel

    Luxaflex Metal Headrail Dimensions

    If you would like to know which head rail Luxaflex use for your colour choice please contact us on 01949 845399

    Headrailimage.jpg Bottomrailimage.jpg

    Luxaflex Metal Profile Colour

    If you want to know what colour your head and bottom rail will be please contact us on 01949 845399

    If you are ordering Blinds to sit next to each other or in a bay you can select to have the slats/vanes lining up across several blinds. The Blinds must be installed at the same height and have the same drop.

    The manufacturers will align the slats/vanes as closely as possible.

    Please Note: The number of ladder cords or tapes on a blind varies according to the blind width. Even the smallest difference in size can result in a different number of ladder cords or tapes - If you need to know this please contact us

    Blind Installation Heights

    The 2014 changes to the child safety requirements of BS EN 13120:2009+A12014 place an obligation on all blind manufacturers to sell compliant products.

    If you do not know the installation height of the blind please enter 00 in the box and your blind will be manufactured in accordance with the Safety Regulation requirements.

    If you input an installation height (this is the height the mounting brackets will be installed above the floor level) then your blind may be manufactured with longer controls providing they confirm to the child safety legislation.

    For windows in unusual positions or installed extremely high, please contact us.

    Child Safe Installation Height Diagram

    If you are unsure please contact us on 01949 845399
