INTU Micro 16mm Pleated Blind

Place your mouse over this image

10%OFF

Info
Installation Instructions (7)
Delivery

Specification:

16mm Pleated Fabric
Tensioned Child Safe Design
Designed specifically for bi-folding doors and compact spaces
Guided Operation available
Bead Fit fitting method - no holes, no screws
Shallow recess fit
Headrail approximately 22mm deep
Ability to easily adjust the tension
Fabric sits clear of the glass
Choice of headrail colour
Colour co-ordinated components
Standard or Multi-zone models
Bead Fit, Guided Bead Fit and Screw Fit options
Suitable for UPVC, Aluminium or Wood window frames
Suitable for universal bead types - square and angled

NOTE: Due to the nature of a single pleat fabric, you will see the punch holes that the cords run through when the blind is in the down position

Delivery

For full details of our delivery times please
click here

INTU Micro 16mm Pleated Blind

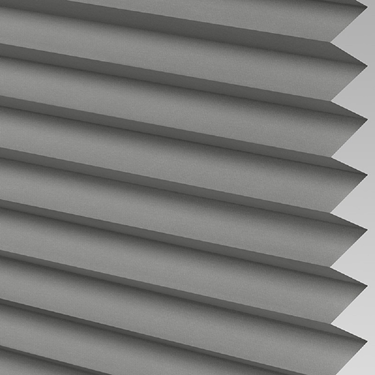

Infusion ASC Concrete

Order Code

10053

RRP from

£112.66

Our price from

£101.39

INTU Micro 16mm Pleated Translucent Blind

Micro 16mm Pleated fabric blinds are the perfect fit for compact spaces and bi-folding doors. The ASC fabrics benefit from a reflective backing which makes them energy efficient.

No Holes, No Screw Bead fit and Guided Bead fit available. Also Screw Fit

available.

NOTE: Due to the nature of a single pleat fabric wou will see the punch holes that the cord runs through when the blind is in the down position

Price in GBP

RRP from

£112.66

Our price from

£101.39

Measurement
Millimetres
Centimetres
Inches
Width
*
help text
Drop
*
help text

Notification Message close

Bead Type

Profile Type

Multi-Zone Blind

Installation Option

Hardware Colour

Window Frame Type

INTU Micro Rubber Bead Type

It is important to select the Rubber Bead Type that you have in your window.

The maximum bead depth for the Screw Fit blinds is 16mm

INTU Micro Rubber Bead Type

INTU Micro Rubber Profile Type

Please select one of the below side profile shapes. The three profiles listed are the only ones available for the INTU Micro Blinds, there are no alternatives.

XL Profiles

Profiles are not available/required on the the Guided Bead Fit or the Tensioned Screw Fit installation options

Multi-Zone

If you require greater control over shade and light than offered by a standard top fix blind, Multizone is the solution. Multizone blinds have two moving rails allowing you to operate the blind both at the top and bottom.

Multizone is a feature on any blind using fabric from the Pleated or Cellular range.

INTU Micro Installation Option

Tensioned Bead Fit - Blind fits by means of brackets that slide between the glass and the rubber bead of the window/door. The blind endcaps then attach to the brackets offering a secure fit without the need for screws.

Guided Bead Fit - Blind fits by means of brackets that slide between the glass and the rubber bead. The profiles then stick to the glass by means of adhesive strips. Guided endcaps restrain the top and bottom of the blind and prevent unwanted movement - this is a beneficial feature when installing on bi-folding doors.

The Guided Bead Fit is ideal for windows and doors with a square edge frame and a recessed rubber bead.

Screw Fit - Installation of the screw fit blind is acheived using 2 screws that are fitted directly to headrail endcaps. Tension cords using specially designed bead grommets that are installed through drill holes in the bottom bead of the door/window. Brass bushes are supplied for installations where the blind is being fitted to a timber frame.

NOTE-Screw fit blinds are not pre-tensioned.
