VALE Dim Out Roller Blind (Standard Window)

Place your mouse over this image

Image gallery

Info
Installation Instructions (3)
Delivery

Specification:

It is important to check your measurements as mistakes cannot be rectified later

Blackout fabric
White Light Proof Backing
Bottom Bar in Welded Bottom Pocket
Bracket Covers included
Metal side chain with Child Safety P Clip Tension device
Standard or Reverse roll
Blinds upto 2000mm wide will be on a 32mm tube
Blinds over 2000mm wide will be on a 40mm tube

Control Length in accordance with the Child Safety Regulations

NOTE: Blinds over 1800mm wide with a drop great than 1600mm will have a horizontal join in the fabric

Delivery

For full details of our delivery times please
click here

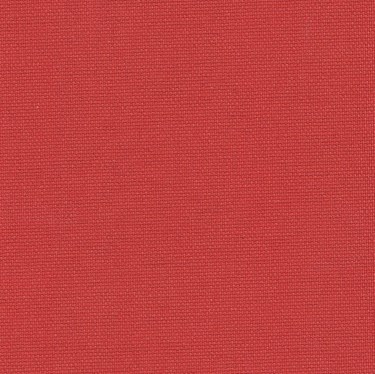

VALE Dim Out Roller Blind (Standard Window)

40581-10117-Classic Red

Order Code

7777

From

£48.47

VALE Blinds offer a unique range for customers that want to use the same blind for a standard window as they use in their Skylight window. Select from the colours below and we will make the matching blind for you from VALE components into a standard window roller blind.

These VALE Blackout Roller Blinds are not 100% blackout due to the blind not having side rails. The White backing on the fabric on the roller is blackout and will not let light through it.

Manufactured In accordance with the Child Safety Regulation for more information see our Child Safety information page

Price in GBP

From

£48.47

Measurement
Millimetres
Centimetres
Inches
Width
*
help text
Drop
*
help text

Notification Message close

Recess or Exact

Control Option

Roll Option

Measurement from Top of Blind to Floor

4 characters remaining.

Inside Recess

The recess is inside the window opening. Choose this option if you want to the blind to lie in the recess of the window.

Width: Measure the inside width of the window at the top middle and bottom. Use the narrowest width measurement always using a metal tape measure.

Height: Measure the height of the window at the left, centre and right. Use the shortest height measurement always using a metal tape measure.

We will deduct the manufacturers recommended tolerance off the width/drop of the blind to ensure the blind operates perfectly within the window recess.

Outside Recess/Exact

Outside Recess/Exact is the outside of the window opening, overlapping the window recess. Choose this option if you want the blind to overlap the window recess.

Width
To minimise light leakage it's recommended that the blind overlaps the window recess on the width by least 40mm each side (60mm in the case of vertical blinds).

Height
When measuring the height take into account the required space for the mounting bracket. A flat surface of a minimum 70mm above is required (50mm in the case of vertical blinds). The overlap at the bottom of the blind is a matter of personal choice but please take into account obstacles such as radiators.

If you are unsure please contact us on 01949 845399

Vale Roller Control Operation

Our Vale Roller blinds as standard have a metal control chain on either the left or the right hand side of the blind with a tensioning device to comply with with Child Safety Legislation

Bloc Ouro Child Safe Clip

If you are unsure please contact us on 01949 845399

Roller Blind - Standard or Reverse Roll

Standard Roll

All Roller blinds are made as Standard - with the fabric falling off the roller towards the window. This option as always recommended when using a Dim out / Blackout fabric as this will reduce the light entering the room because the fabric will be closer to the window frame.

Standard or Reverse Roll Image

Reverse Rolled

A Reverse rolled Roller blind is made with the fabric falling off the roller away from the window. This is usually preferred when you are trying to miss PVC window handles. We always recommend this option when ordering a printed fabric.

This option is recommened for Blackout Blinds as the back of the fabric can be a different colour.

If you are unsure please contact us on 01949 845399

Blind Installation Heights

The 2014 changes to the child safety requirements of BS EN 13120:2009+A12014 place an obligation on all blind manufacturers to sell compliant products.

If you do not know the installation height of the blind please enter 00 in the box and your blind will be manufactured in accordance with the Safety Regulation requirements.

If you input an installation height (this is the height the mounting brackets will be installed above the floor level) then your blind may be manufactured with longer controls providing they confirm to the child safety legislation.

For windows in unusual positions or installed extremely high, please contact us.

Child Safe Installation Height Diagram
