Luxaflex 32mm Translucent Duette Blind

Place your mouse over this image

23%OFF

Info
Delivery

Luxaflex® 32mm Duette have the following as standard:

Standard Model 110
Choice of Control Options
Colour coordinating profiles and hardware

NOTE:For Coordinated colours contact us.

Additional Options

Option 1 - Cord/Cord Lock
Option 2 - Hand/Wand Control
Option 5 - White Plastic Chain
LiteRise - Cordless Operation
Easyrise - Endless Cord
SmartCord Controls
PowerRise Controls
Telescopic Wands and Handles for use with LiteRise and control option 2 ONLY
Contrasting rail and components
Side channels in White, Silver, Dark Grey and Brown for use with option 1 & option 2 ONLY

NOTE: For more information on options please click the little yellow information button to the right of each option

Luxaflex LiteRise (click to watch video)

Size Restrictions

Min Width 450mm - Max Width 2400mm

Min Drop 150mm - Max Drop 2100mm

Luxaflex SmartCord (click to watch video)

Size Restrictions

Min Width 430/550mm - Max Width 3000mm

Min Drop 150mm - Max Drop 3000mm

PowerRise

Size Restrictions

Min Width 550/1000mm - Max Width 3000mm

Min Drop 150mm - Max Drop 3000mm

NOTE: Smaller Min width for Model 110

Larger Min width for Model 120

Please be aware that head rail and bottom bar dimensions alter depending on the control option chosen.

Safety Devices

All of our products meet with the child safety requirements of EN 13120 Internal Blinds - performance requirements including safety.

Control Lengths

As a requirement of EN13120, the maximum control length is determined by the safety device used on the product as well as the drop of the blind or installation height. The below details the maximum length of looped chain available.

Safety Device used	Installation Height	Loop Length
Safety Chain	Not Known	2/3 of the blind drop
	Known	Distance from floor to end of control to be at least 0.6m
Breakaway cord connector or tensioning device	Not Known and drop of blind up to 2.5m	Up to 1m
	Not known and drop of blind over 2.5m	Blind drop less 1.5m
	If known	Distance from floor to end of control to be at least 1.5m

Delivery

For full details of our delivery times please
click here

Luxaflex 32mm Translucent Duette Blind

Elan Full Tone 9356

Order Code

3139

RRP from

£200.00

Our price from

£154.00

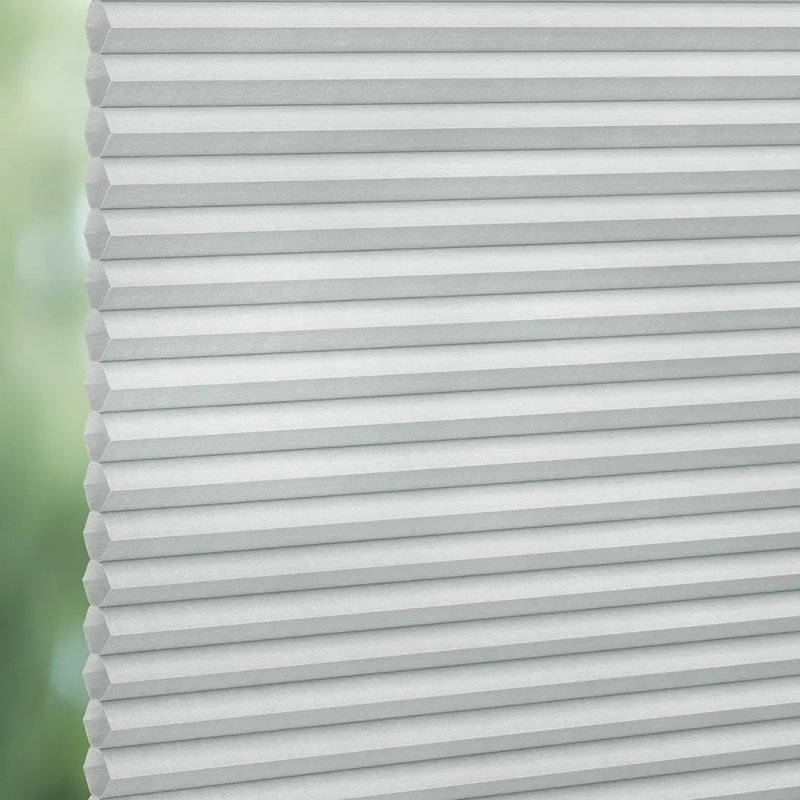

Luxaflex® Duette Shades with 25mm pleat width look refined and elegant on small and medium-sized windows. Extremely suitable for mounting close to the glass.

Duette® energy saving blinds have a unique honeycomb structure which traps air inside and provides welcome insulation, bringing you the perfect combination of style and function. They cleverly keep heat out in the summer, and in the winter keeps it in, giving you better climate control and welcome savings on your energy bills.

Saving upto 25% on your Energy Bills

Reducing Heat Loss by upto 46%

Reduces noise polution by upto 45%

Luxaflex® Duette shades protect you, your furniture, wooden floors and valuable objects against damaging ultraviolet radiation.

Duo Tone - Colour choice on room side whilst white on the outside

Full Tone - Same colour on the outside as the inside of the fabric

VALE BLINDS offer the complete range of Luxaflex® collections at competitive prices

Price in GBP

RRP from

£200.00

Our price from

£154.00

Measurement
Millimetres
Centimetres
Inches
Width
*
help text
Drop
*
help text

Notification Message close

Recess or Exact

Inside Recess

The recess is inside the window opening. Choose this option if you want to the blind to lie in the recess of the window.

Width: Measure the inside width of the window at the top middle and bottom. Use the narrowest width measurement always using a metal tape measure.

Height: Measure the height of the window at the left, centre and right. Use the shortest height measurement always using a metal tape measure.

We will deduct the manufacturers recommended tolerance off the width/drop of the blind to ensure the blind operates perfectly within the window recess.

Outside Recess/Exact

Outside Recess/Exact is the outside of the window opening, overlapping the window recess. Choose this option if you want the blind to overlap the window recess.

Width
To minimise light leakage it's recommended that the blind overlaps the window recess on the width by least 40mm each side (60mm in the case of vertical blinds).

Height
When measuring the height take into account the required space for the mounting bracket. A flat surface of a minimum 70mm above is required (50mm in the case of vertical blinds). The overlap at the bottom of the blind is a matter of personal choice but please take into account obstacles such as radiators.

If you are unsure please contact us on 01949 845399

Luxaflex® Duette/Plisse® Blind Telescopic Wand

If you choose Hand/Wand control you can also choose to purchase a 3m telescopic wand to aid the opening and closing of your blind if it is high up or out of reach.

Rod colour may change colour displayed is for illustration purposes only.

If you are unsure please call us on 01949 845399

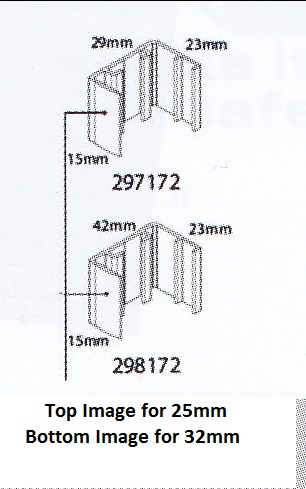

Luxaflex® Duette® Side Channels

Although the Blackout Fabrics do not let light in through them you do get light leakage around the edges.

To minimise the amount of light leakage you can select to add side channels to your blind.

These are a 'U' shaped track that fit down the sides of your window that the edge of the 25mm & 32mm fabrics runs inside. Thus minimising the amount of light creeping around the sides of the fabric.

Side channels are NOT pre-drilled.

NOTE: These side channels are designed to fit with the standard 110 model with the control option 1 & 2 ONLY

If you are unsure please contact us on 01949 845399

Luxaflex® Duette®/Plisse Profile & Hardware Colour

The head rail and bottom rail are colour co-ordinated. There are a total of 6 hardware colours.

Of course you can select one of the other colours to suit your window frame and/or interior.

Luxaflex Duette Hardware Colour

HEAD RAIL - DIMENSIONS

Luxaflex Duette/Plisse Headrail sizes

Contact us on 01949 845399 if you want to know which colour Luxaflex® co-ordinate with any selected fabric.

Luxaflex® Duette/Plisse® Blind Control Options

Cord & Cord Lock Hand/Wand Control Endless Chain

Cord and Cord Lock

This option has lift cord with cord lock system.

Hand Control

Hand or Wand control with tensioned cord system with fixing plates and standard handle (max width 1500mm) Same handle as the LiteRise option

SmartCord

Retractable cord operation, meaning the cord remains a constant distance from the floor whilst not in operation.

LiteRise

Operated by a stylish handle, Literise has no operating cords making it completely child safe.

Optional wand handle and wand available - see below images

Handle for hand use Hand Operation Wand Operation

Chain

Chain operation supplied with a child safe breakaway device

Motorisation Available on Request

If you are unsure please call us on 01949 845399

Luxaflex® Duette®/Plisse Blind Models

OTHER MODELS AVAILABLE ON REQUEST - 01949 845399

Standard Stack - This is the standard model that has a fixed headrail at the top for top stacking.

Available with ALL control options.

Top Down, Bottom Up - This model has a fixed head rail although the fabric is not fixed to it. The fabric has top and bottom rails fixed to it. There are visible tension wires when the blind is stacked at the bottom.

Available with control options Cord & Cord Lock, Smartcord & Literise ( There will be controls on both side of the blind)

Model 3242 - This model has no fixed rails and works by means of side tension wires, therefore you will need to fit mounting plates in all 4 corners. (see size restrictions below) Hand Control ONLY

Min Width 250mm - Max Width 1700mm - Min Drop 100mm - Max Drop 2300mm (Blinds over 1280mm with be supplied with two handles)

Mounting Plate Dimensions - 20mm x 15mm x 5mm

TruFit - Available with 25mm Duette fabrics and 20mm Plisse fabrics ONLY Fits directly onto the glass without drilling by means of adhesive strips that are approximately 18mm wide.

Its a simple handle operated lifting system, ideal for Tilt and Turn windows, doors and also standard windows. The Top/Down Bottom Up operation enables you to positions your blind exactly where you want it.

The top and bottom moving rails are approximately 22mm deep x 20mm high.

Two fabrics on one TruFit system also available - prices on request

Min Width 250mm - Max Width 1280mm

Min Drop 200mm - Max Drop 2200mm* fabric dependant (*1700mm on Architella Fabrics)
