Luxaflex Silhouette 75mm Vane Dim-Out

Place your mouse over this image

On offer

23%OFF

  • 5 Year Guarantee
  • Info
  • Downloads (1)

Luxaflex® Silhouette® Shades

Standard Specification:

  • 75mm Vane Width
  • Cassette colour co-ordinated from one of three colours
  • Cassette Size 82mm deep and 65mm high
  • 75mm colour co-ordinated aluminium bottom rail with balance weight
  • Endless Cord Operation on left or right
  • Child Safe Tension Device

Options

  • Choice of 3 different coloured cassettes with matching bottom rails
  • Smartcord operation
  • LiteRise Operation

LiteRise - Size Restrictions

Min Width - 500mm Max Width - 2750-3000mm

Min Drop - 300mm Max Drop - 2100mm

SmartCord - Size Restrictions

Min Width - 300mm Max Width - 2500-3000mm

Min Drop - 300mm Max Drop - 2200-3000mm

MAX SIZES CHANGE DEPENDING ON FABRIC CHOICE

Safety Devices

All of our products meet with the child safety requirements of EN 13120 Internal Blinds - performance requirements including safety.

Control Lengths

As a requirement of EN13120, the maximum control length is determined by the safety device used on the product as well as the drop of the blind or installation height. The below details the maximum length of looped chain available.

Safety Device used

Installation Height

Loop Length

Safety Chain

Not Known

2/3 of the blind drop

Known

Distance from floor to end of control to be at least 0.6m

Breakaway cord connector or tensioning device

Not Known and drop of blind up to 2.5m

Up to 1m

Not known and drop of blind over 2.5m

Blind drop less 1.5m

If known

Distance from floor to end of control to be at least 1.5m

Beat a Price

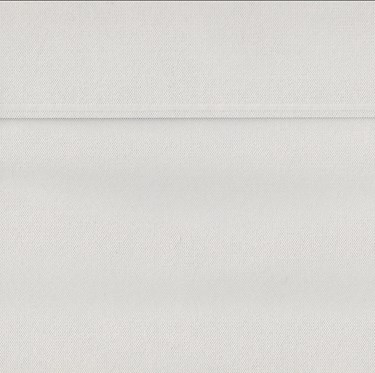

Luxaflex Silhouette 75mm Vane Dim-Out

Ombre-Chalk White 6376

Order Code
7913
£362.00
£278.74

Luxaflex® Silhouette® 75mmShades give you ultimate privacy with a view to the outside when open during the day. When completely closed in the evenings, you can enjoy privacy.

Available in the following options

Ombre Blackout Fabrics

Bon Soir Originale Blackout Fabrics

VALE BLINDS offer the complete range of Luxaflex® collections at competitive prices.

Price in GBP
£362.00
£278.74
    • *
    • *
    • Calculate
    Click for help
    Click for help
    Click for Help
    Click for help
    4 chars left.

    Inside Recess


    The recess is inside the window opening. Choose this option if you want to the blind to lie in the recess of the window.

    Width: Measure the inside width of the window at the top middle and bottom. Use the narrowest width measurement always using a metal tape measure.

    Height: Measure the height of the window at the left, centre and right. Use the shortest height measurement always using a metal tape measure.

    We will deduct the manufacturers recommended tolerance off the width/drop of the blind to ensure the blind operates perfectly within the window recess.



    Outside Recess/Exact


    Outside Recess/Exact is the outside of the window opening, overlapping the window recess. Choose this option if you want the blind to overlap the window recess.

    Width
    To minimise light leakage it's recommended that the blind overlaps the window recess on the width by least 40mm each side (60mm in the case of vertical blinds).

    Height
    When measuring the height take into account the required space for the mounting bracket. A flat surface of a minimum 70mm above is required (50mm in the case of vertical blinds). The overlap at the bottom of the blind is a matter of personal choice but please take into account obstacles such as radiators.



    If you are unsure please contact us on 01949 845399

    Luxaflex® Silhouette® Control Options

    Standard SmartCord®

    Min Width - 300mm  Min Drop - 300mm

    SmartCord® is a revolutionary and patented cord lifting system that features a retractable pull cord that maintains a constant length, allowing you to effortlessly raise and lower the blind.

    LiteRise®

    Min Width - 500mm  Min Drop - 300mm

    This is a hand operated system with no visible wires or cords. Gently raise and lower the blind by hand to leave the blind in the desired position. Inherently child Safe.

    Endless Cord

    Min Width - 300mm  Min Drop - 400mm

    Simplicity itself, Silhouette® Shades are operated with a single pull cord, controlling the raising and lowering of the blind, together with the tilting of the vanes.

    A strong, endless cord ensures a smooth and quiet action.

    A Child Safety Tensioning Device will be supplied with this control option which complies with the EN13120 Child Safety Regulation.

    If you are unsure please contact me on 01949 845399

    Luxaflex® Silhouette® Shades Important information

    Recess size reductions are approximately 5mm off the width and drop of the blind

    When mounting blinds on a rebate in a ceiling an additional 25mm is required in front of the headrail to position on brackets.

    Vane Opening

    Vanes on the Silhouette® fabric open to slightly different degrees. Consequently, there are variations in visibility through the shadings when the vanes are tilted to their maximum open position.

    Vane Closure

    When the vanes of a Silhouette® shade are closed, they overlap each other, blocking the view. However, the vanes do not contact each other along the full length of the shade - they do not form a perfect seal against light leakage.

    Please note a minor rippling may occur in the voil section attached to the bottom rail. This is a by-product of the manufacturing process and is considered to be within specification.

    If you are unsure please contact us on 01949 845399

    Blind Installation Heights

    The 2014 changes to the child safety requirements of BS EN 13120:2009+A12014 place an obligation on all blind manufacturers to sell compliant products.

    If you choose an 'Not Known Installation Height' from the drop down box your blind will be manufactured in accordance with the Safety Regulation Requirements.

    If you select an installation height (this is the height the brackets will be installed above the floor level) then your blind will be manufactured taking this into account.


    If you are unsure please contact us on 01949 845399
