Luxaflex 32mm Translucent Duette Blind

Place your mouse over this image

On offer

22%OFF

  • 5 Year Guarantee
  • Info
  • Installation Instructions (8)
  • Delivery

Luxaflex« 32mm Duette Blinds have the following as standard:

  • Standard Stack at the Top
  • Choice of operating controls
  • Colour coordinating profiles and hardware

NOTE:For Coordinated colours contact us.

Additional Options

  • Hand/Wand Control
  • LiteRise Cordless Control
  • Endless Chain Control
  • SmartCord Control
  • 3m Telescopic Wand and Handle for use with LiteRise and Hand Control Option
  • Contrasting rail and components

NOTE: For more information on options please click the little pink information button to the right of each option

Luxaflex LiteRise

Size Restrictions

Min Width 280mm* - Max Width 2400mm

Min Drop 150mm - Max Drop 2100mm

* Min width for Architella and Blackout Fabrics 450mm

* Min width for all blinds with a drop over 2700mm is 460mm

Luxaflex SmartCord
Size Restrictions

Min Width 430mm* - Max Width 3000mm^

Min Drop 150mm - Max Drop 3000mm

* Min width for Architella and Blackout Fabrics 460mm

^ Fabric dependant

Please be aware that the dimensions of the head rail and bottom bar alter depending on the control option chosen

Delivery

For full details of our delivery times please
click here

Beat a Price

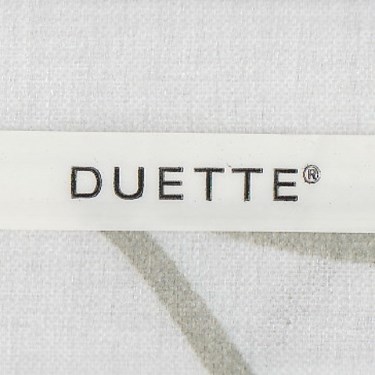

Luxaflex 32mm Translucent Duette Blind

Elan Leaves 0784

Order Code
3139
£252.00
£196.56

Luxaflex® 32mm Duette Shades - An Energy Saving Choice with Acoustic Properties

Duette® energy saving blinds have a unique honeycomb structure which traps air inside and provides welcome insulation, bringing you the perfect combination of style and function. They cleverly keep heat out in the summer, and in the winter keeps it in, giving you better climate control and welcome savings on your energy bills.

Energy efficiency is now probably one of your top priorities and if you want to reduce your expensive energy bills, it's crucial to consider ways to improve.

Gas and Electricity prices have been rising every year and insulating your home is a brilliant way to slash your expenses.

Price in GBP
£252.00
£196.56
    • *
    • *
    • sa_btn_ten_10158080
    Click for help
    Click for Help
    Click for Help
    Click for Help
    Click for Help
    Click for help
    4 characters remaining.
    Click for Help

    Inside Recess


    The recess is inside the window opening. Choose this option if you want to the blind to lie in the recess of the window.

    Width: Measure the inside width of the window at the top middle and bottom. Use the narrowest width measurement always using a metal tape measure.

    Height: Measure the height of the window at the left, centre and right. Use the shortest height measurement always using a metal tape measure.

    We will deduct the manufacturers recommended tolerance off the width/drop of the blind to ensure the blind operates perfectly within the window recess.



    Outside Recess/Exact


    Outside Recess/Exact is the outside of the window opening, overlapping the window recess. Choose this option if you want the blind to overlap the window recess.

    Width
    To minimise light leakage it's recommended that the blind overlaps the window recess on the width by least 40mm each side (60mm in the case of vertical blinds).

    Height
    When measuring the height take into account the required space for the mounting bracket. A flat surface of a minimum 70mm above is required (50mm in the case of vertical blinds). The overlap at the bottom of the blind is a matter of personal choice but please take into account obstacles such as radiators.



    If you are unsure please contact us on 01949 845399

    Luxaflex® Duette®/Plisse Blind Models

    Luxaflex Duette Standard Stack model110.png

    Luxaflex Duette Top down bottom up model120.png Model 3242 model124.png

    OTHER MODELS AVAILABLE ON REQUEST - 01949 845399

    Standard Stack - This is the standard model that has a fixed headrail at the top for top stacking.

    Available with ALL control options.

    Top Down, Bottom Up - This model has a fixed head rail although the fabric is not fixed to it. The fabric has top and bottom rails fixed to it. There are visible tension wires when the blind is stacked at the bottom.

    Available with control options Cord & Cord Lock, Smartcord & Literise ( There will be controls on both side of the blind)

    Model 3242 - This model has no fixed rails and works by means of side tension wires, therefore you will need to fit mounting plates in all 4 corners. (see size restrictions below) Hand Control ONLY

    Min Width 300mm - Max Width 1700mm - Min Drop 100mm - Max Drop 2300mm (Blinds over 1280mm with be supplied with two handles)

    Mounting Plate Dimensions - 20mm x 15mm x 5mm

    If you are unsure please call us on 01949 845399

    Luxaflex® Duette/Plisse® Blind Control Options

    Cord & Cord Lock Hand/Wand Control smartcord2.jpg LiteRise1.jpg Endless Chain

    Cord and Cord Lock

    This option has lift cord with cord lock system.

    Hand Control

    Hand or Wand control with tensioned cord system with fixing plates and standard handle (max width 1500mm) Same handle as the LiteRise option

    SmartCord

    Retractable cord operation, meaning the cord remains a constant distance from the floor whilst not in operation.

    LiteRise

    Operated by a stylish handle, Literise has no operating cords making it completely child safe.

    Optional wand handle and wand available - see below images

    Handle for hand use Hand Operation HandWandHandle2.png Wand Operation

    Chain

    Chain operation supplied with a child safe breakaway device

    Motorisation Available on Request

    If you are unsure please call us on 01949 845399

    Luxaflex® Duette®/Plisse Profile & Hardware Colour

    The head rail and bottom rail are colour co-ordinated. There are a total of 6 hardware colours.

    Of course you can select one of the other colours to suit your window frame and/or interior.

    Luxaflex Duette Hardware Colour

    HEAD RAIL - DIMENSIONS

    Luxaflex Duette/Plisse Headrail sizes

    Contact us on 01949 845399 if you want to know which colour Luxaflex® co-ordinate with any selected fabric.

    Luxaflex® Duette/Plisse® Blind Telescopic Wand

    If you choose Hand/Wand control you can also choose to purchase a 3m telescopic wand to aid the opening and closing of your blind if it is high up or out of reach.

    Rod colour may change colour displayed is for illustration purposes only.


    Wandcontrol_image1.png HandWandHandle1.png

    If you are unsure please call us on 01949 845399

    Blind Installation Heights

    The 2014 changes to the child safety requirements of BS EN 13120:2009+A12014 place an obligation on all blind manufacturers to sell compliant products.

    If you do not know the installation height of the blind please enter 00 in the box and your blind will be manufactured in accordance with the Safety Regulation requirements.

    If you input an installation height (this is the height the mounting brackets will be installed above the floor level) then your blind may be manufactured with longer controls providing they confirm to the child safety legislation.

    For windows in unusual positions or installed extremely high, please contact us.

    Child Safe Installation Height Diagram

    If you are unsure please contact us on 01949 845399

    Luxaflex® Duette®/Plisse Blind Models

    T1 Side Guiding with fixed bottom rail

    Luxaflex T1 Side Guiding

    T2 Side Guiding with fixing plates

    Luxaflex T2 Side Guiding
