Luxaflex® Perforated PVC Vertical Blinds - 89mm

Inside Recess

The recess is inside the window opening. Choose this option if you want to the blind to lie in the recess of the window.

Width: Measure the inside width of the window at the top middle and bottom. Use the narrowest width measurement always using a metal tape measure.

Height: Measure the height of the window at the left, centre and right. Use the shortest height measurement always using a metal tape measure.

We will deduct the manufacturers recommended tolerance off the width/drop of the blind to ensure the blind operates perfectly within the window recess.

Outside Recess/Exact

Outside Recess/Exact is the outside of the window opening, overlapping the window recess. Choose this option if you want the blind to overlap the window recess.

Width
To minimise light leakage it's recommended that the blind overlaps the window recess on the width by least 40mm each side (60mm in the case of vertical blinds).

Height
When measuring the height take into account the required space for the mounting bracket. A flat surface of a minimum 70mm above is required (50mm in the case of vertical blinds). The overlap at the bottom of the blind is a matter of personal choice but please take into account obstacles such as radiators.

If you are unsure please contact us on 01949 845399

Luxaflex® Vertical Operation

Luxaflex® Vertical blinds can be operated in several ways.

Cord & Chain operation

Slide Tilt Wand operation

Mono Command Chain operation

Please note that Wand Control is not available on split stack blinds

If you are unsure please contact us on 01949 845399

Luxaflex® Vertical Head Rail

Luxaflex® Vertical Blinds as standard come with a white head rail with metal chain controls.

BROWN HEADRAIL NOW DISCONTINUED

If you are unsure please please contact us on 01949 845399

Luxaflex® Vertical: Stacking Options

Luxaflex® offer you the following stacking options so that you can select the one that suits your window best.

NOTE: When the vanes are fully open and stacked at the chosen position the following gap will be left between the end vane and the end of the track. This is so that you can stack your vanes in either the open or closed position.

89mm vane - Gap of approximately 45mm

127mm vane - Gap of approximately 64mm

250mm vane - Gap of approximately 125mm

If you are unsure please call us on 01949 845399

Luxaflex® Vertical Operation

As standard Luxaflex® vertical blidns come complete with top fix brackets.

Alternatively you can select face fix brackets that come in 3 sizes

Blind Installation Heights

The 2014 changes to the child safety requirements of BS EN 13120:2009+A12014 place an obligation on all blind manufacturers to sell compliant products.

If you do not know the installation height of the blind please enter 00 in the box and your blind will be manufactured in accordance with the Safety Regulation requirements.

If you input an installation height (this is the height the mounting brackets will be installed above the floor level) then your blind may be manufactured with longer controls providing they confirm to the child safety legislation.

For windows in unusual positions or installed extremely high, please contact us.

If you are unsure please contact us on 01949 845399

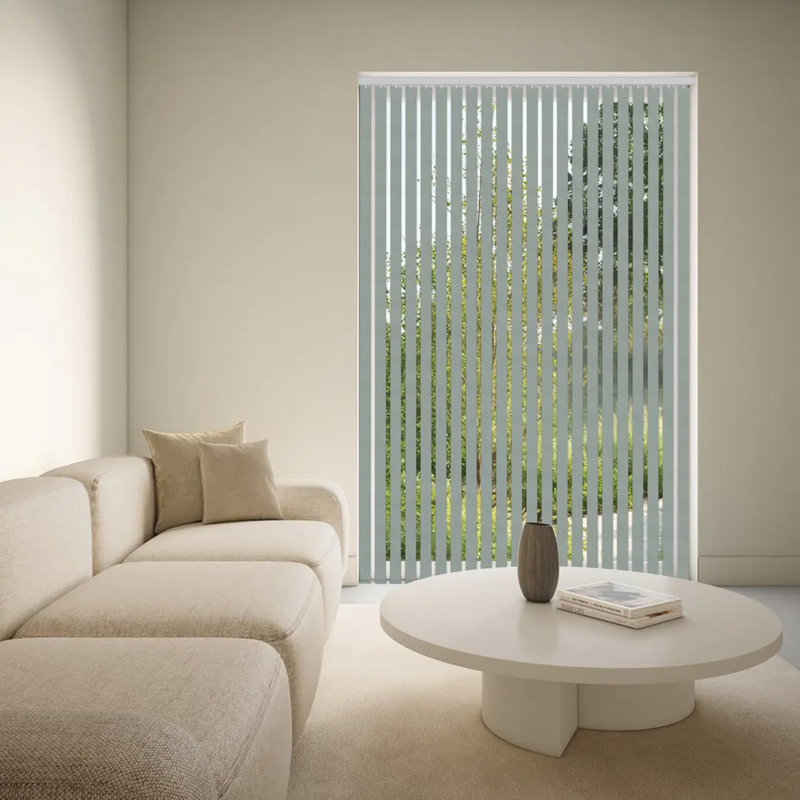

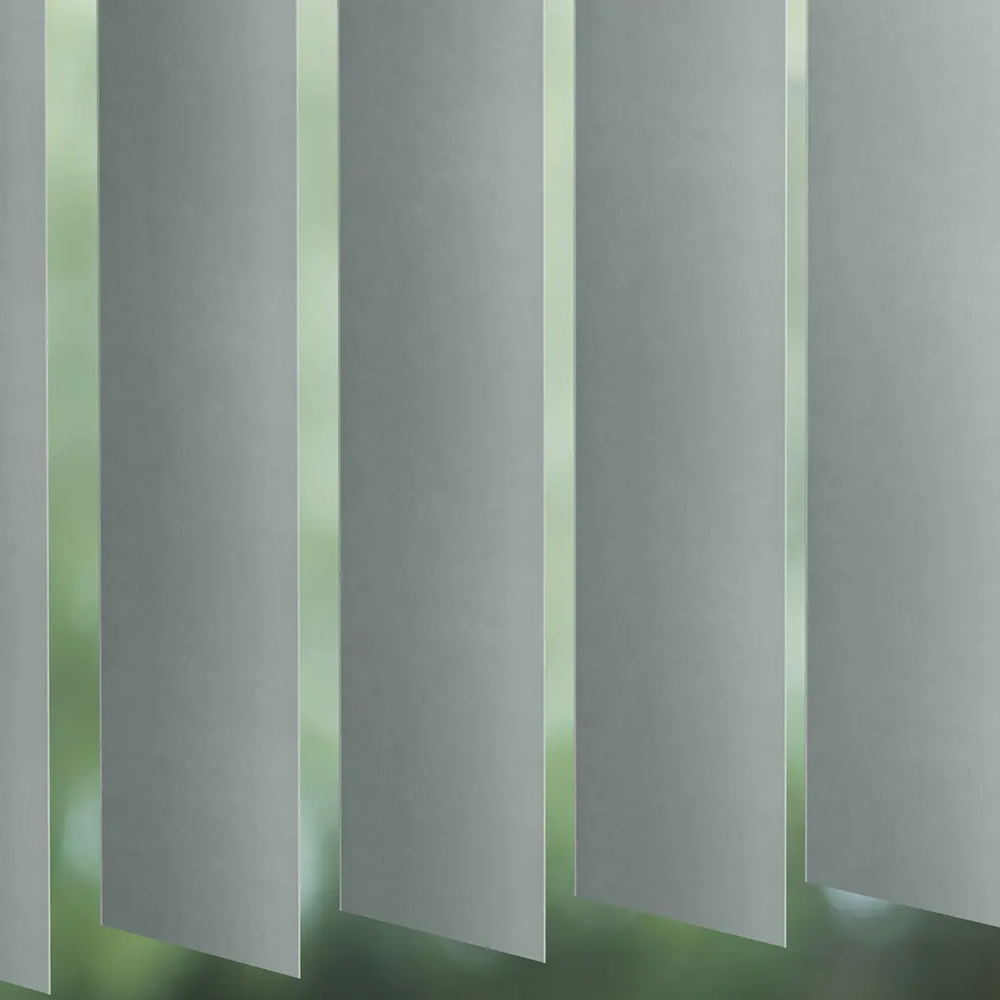

Luxaflex® PVC Perforated Vertical Blinds

Play with light by having perforated vanes on your vertical blind.

Choose the amount or style of perforation to suit your own style.

If you are unsure please contact me on 01949 845399
