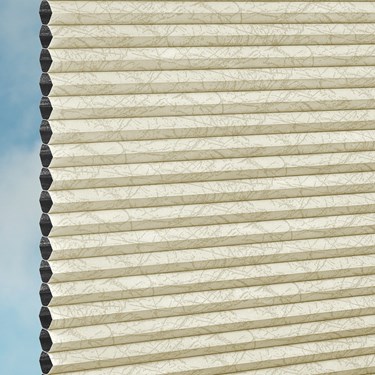

Duette® Motorised Montana Structures Duotone RD Beige 4440

Inside Recess

The recess is inside the window opening. Choose this option if you want to the blind to lie in the recess of the window.

Width: Measure the inside width of the window at the top middle and bottom. Use the narrowest width measurement always using a metal tape measure.

Height: Measure the height of the window at the left, centre and right. Use the shortest height measurement always using a metal tape measure.

We will deduct the manufacturers recommended tolerance off the width/drop of the blind to ensure the blind operates perfectly within the window recess.

Outside Recess/Exact

Outside Recess/Exact is the outside of the window opening, overlapping the window recess. Choose this option if you want the blind to overlap the window recess.

Width
To minimise light leakage it's recommended that the blind overlaps the window recess on the width by least 40mm each side (60mm in the case of vertical blinds).

Height
When measuring the height take into account the required space for the mounting bracket. A flat surface of a minimum 70mm above is required (50mm in the case of vertical blinds). The overlap at the bottom of the blind is a matter of personal choice but please take into account obstacles such as radiators.

If you are unsure please contact us on 01949 845399

Duette® Motorised Honeycomb Blinds

To make life easy these blinds come complete with the Integrated Somfy Tilt & Lift 25 RTS motor. You can select the motor to be on the left or the right hand side of the blind to suit your needs.

Duette® Motorised Honeycomb Blinds

The Somfy motor is operated by a Somfy 12V External Lithium Ion Rechargeable Battery Pack.

Duette® Honeycomb Blinds

If you select to have your blind motorised you will need to select a remote control.

Situo 1 Remote Control

Single Channel Remote This is a basic remote that can be programmed to  adjust the speed at which the blind is controlled Can have upto 8 items operating in unison on the single channel

Situo 5 Remote Control

Multi Channel Remote 4 Single channels and 1 Multi channel function Offers the ability to operate miltiple blinds independently from 1 remote Each channel can have upto 8 items operating in unison

Telis 16 Remote Control

Multi Channel Remote Manage upto 16 motors or groups of motors with 1 remote  The user can name and assign icons to each group of applications Large screen detailing all information which can be read easily

Smoove 1 RTS Wireless Wall Switch - Single Channel

Secure, single channel RTS (operates one blind or group of blinds simultaneously) Battery powered control unit that can be placed anywhere within range

Smoove 4 RTS Wireless Wall Switch - Four Channels

Secure, four channel RTS (operates four blinds or four groups of blinds) Battery powered control unit that can be placed anywhere within range
