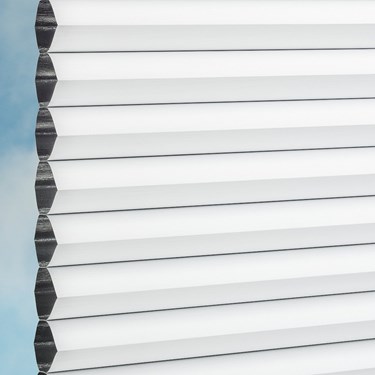

Duette® Elan Duotone RD Swan 0000

Inside Recess

The recess is inside the window opening. Choose this option if you want to the blind to lie in the recess of the window.

Width: Measure the inside width of the window at the top middle and bottom. Use the narrowest width measurement always using a metal tape measure.

Height: Measure the height of the window at the left, centre and right. Use the shortest height measurement always using a metal tape measure.

We will deduct the manufacturers recommended tolerance off the width/drop of the blind to ensure the blind operates perfectly within the window recess.

Outside Recess/Exact

Outside Recess/Exact is the outside of the window opening, overlapping the window recess. Choose this option if you want the blind to overlap the window recess.

Width
To minimise light leakage it's recommended that the blind overlaps the window recess on the width by least 40mm each side (60mm in the case of vertical blinds).

Height
When measuring the height take into account the required space for the mounting bracket. A flat surface of a minimum 70mm above is required (50mm in the case of vertical blinds). The overlap at the bottom of the blind is a matter of personal choice but please take into account obstacles such as radiators.

If you are unsure please contact us on 01949 845399

Duette® 64mm Honeycomb Blinds

You have a choice of model for these blinds to best suit your needs

Standard Model

Min Width 430mm - Max Width 3600mm Dependant on Fabric

Min Drop 100mm - Max Drop 3000mm Dependant on Fabric

DUOTONE Max 9m2

ROOM DARKENING Max 7.5m2

Top Down/Bottom Up Model - Only available with LiteRise®

or SmartCord®

Min Width 500mm - Max Width 3600mm

Min Drop 100mm - Max Drop 3000mm

DUOTONE Max 9m2

ROOM DARKENING Max 7.5m2

Duette® 64mm Honeycomb Blinds

As standard your blind will have the LiteRise® or Smartcord® operation.

LiteRise® System

A cordless system that is completely child safe. The blind is lowered and raised by moving the bottom bar with just one hand. The unique design holds the blind in any position in your window.

Min Width 450mm - Max Width 1800mm

Min Drop 150mm - Max Drop 1800mm

DUOTONE Max 3m2

ROOM DARKENING Max 3m2

Model AO20 has LiteRise® to the bottom & the top moving bars

SmartCord® System

This system uses a retractable cord mechanism to raise and lower the blind. The cord moves smoothly to a set desired height of the blind for ease, giving a convenient yet child safe operation. Constant cord length means that there are never any long, dangling cords.

Min Width 430mm - Max Width 3600mm

Min Drop 150mm - Max Drop 3000mm

DUOTONE Max 9m2

ROOM DARKENING Max 7.5m2

Model AO20 SmartCord® on the Left & the Right

Motorisation - only available in the AO10 model

Alternatively you can select the 240v mains electric operation or the rechargeable battery operation.

240v Sonesse 40 electric operation can be plugged into a socket, a socket will need to be fitted first, otherwise it needs wiring into a fused spur point.

Min Width 700mm - Max Width 2990mm

Min Drop 150mm - Max Drop 2990mm

Sonesse Ultra 30 rechargeable battery operation has a built-in motor with Li-Ion rechargeable battery pack.

Min Width 700mm - Max Width 2990mm

Min Drop 150mm - Max Drop 2990mm

Max 7.5m²

Duette® Honeycomb Blinds

If you select to have your blind motorised you will need to select a remote control.

Situo 1 Remote Control

Single Channel Remote This is a basic remote that can be programmed to  adjust the speed at which the blind is controlled Can have upto 8 items operating in unison on the single channel

Situo 5 Remote Control

Multi Channel Remote 4 Single channels and 1 Multi channel function Offers the ability to operate miltiple blinds independently from 1 remote Each channel can have upto 8 items operating in unison

Telis 16 Remote Control

Multi Channel Remote Manage upto 16 groups with 1 remote  The user can name and assign icons to each group of applications Large screen detailing all information which can be read easily

Smoove Wall Switch - Single Channel

Secure, single channel RTS (operates one blind or group of blinds simultaneously) Battery powered control unit that can be placed anywhere within range

Smoove Wall Switch - Four Channels

Secure, four channel RTS (operates four blinds or four groups of blinds) Battery powered control unit that can be placed anywhere within range

Duette® 64mm Honeycomb Blinds

You have a choice of hardware colour, headrail and bottom rail, on your blind

White, Magnolia, Bronze Brown, Silver Grey, Metal Grey, Anthracite and Black

Please be aware that the headrail size changes depending on the control option selected.

LiteRise® & SmartCord® Head Rails Sizes

Motorised Head Rail Sizes

Blind Installation Heights

The 2014 changes to the child safety requirements of BS EN 13120:2009+A12014 place an obligation on all blind manufacturers to sell compliant products.

If you do not know the installation height of the blind please enter 00 in the box and your blind will be manufactured in accordance with the Safety Regulation requirements.

If you input an installation height (this is the height the mounting brackets will be installed above the floor level) then your blind may be manufactured with longer controls providing they confirm to the child safety legislation.

For windows in unusual positions or installed extremely high, please contact us.

If you are unsure please contact us on 01949 845399
