Luxaflex 50mm Wooden Venetian Blind - Custom Colour

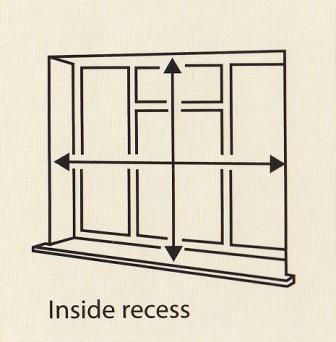

Inside Recess

The recess is inside the window opening. Choose this option if you want to the blind to lie in the recess of the window.

Width: Measure the inside width of the window at the top middle and bottom. Use the narrowest width measurement always using a metal tape measure.

Height: Measure the height of the window at the left, centre and right. Use the shortest height measurement always using a metal tape measure.

We will deduct the manufacturers recommended tolerance off the width/drop of the blind to ensure the blind operates perfectly within the window recess.

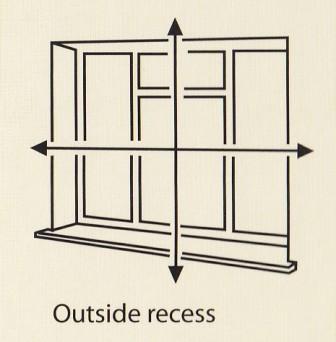

Outside Recess/Exact

Outside Recess/Exact is the outside of the window opening, overlapping the window recess. Choose this option if you want the blind to overlap the window recess.

Width
To minimise light leakage it's recommended that the blind overlaps the window recess on the width by least 40mm each side (60mm in the case of vertical blinds).

Height
When measuring the height take into account the required space for the mounting bracket. A flat surface of a minimum 70mm above is required (50mm in the case of vertical blinds). The overlap at the bottom of the blind is a matter of personal choice but please take into account obstacles such as radiators.



If you are unsure please contact us on 01949 845399

Brackets for Wooden Venetian blinds

Box brackets:- These fit at each end of the blind and can be Top,Side or face fixed (Standard)

Swivel brackets:-These can be fitted in various places along the blind and can be Top or Face fixed only!

Mounting Brackets

Standard Box Brackets	Optional Swivel Brackets

If you are unsure please contact us on 01949 845399

Luxaflex® Wooden Venetian Blinds

As standard your Luxaflex® Wooden Venetian Blind comes complete with a matching shaped valance when your blinds is being fitted into a recess.

If you are fitting your blind outside the recess you have the option to order the matching mitred valance returns.

If you are unsure please contact us on 01949 845399

Luxaflex® Wooden Venetian Blinds

Your Luxaflex® Wooden Venetian Blind is operated by means of a cord tilt and a cord raise/lower control.

LiteRise Operation

LiteRise® is the simplest and safest way to operate your Luxaflex® Wood Blind.

The LiteRise® cordless system makes raising and lowering Wood Blinds easier than ever. Simply push up to raise and pull down to lower.

Tilting of your Luxaflex® Wood Blind is controlled using the stylish metal wand LiteRise®

As the LiteRise® system is operated by pushing and pulling the bottom rail. Please ensure the bottom rail can be accessed when the blind is fully raised.

Battery Tilt Operation

As an alternative you can choose Battery (Radio) Motor - Tilt ONLY control.

Raising and lowering the blind is done by means of cords on the left or the right.

For blinds less than 450mm wide the control must be split on different sides.

If you are unsure please contact us on 01949 845399
